HMTEN

W042-ID5/ID6/ID6.5

To the stars and the sea

Flagship all-in-one，Super-upgrade

Equipped with i5-13420H/ i7-13700H,13620H/ i9-13900HK compared with the previous generation of laptop, performance significantly improved. W042-ID5/ID6/ID6.5 2023 laptop: heavy multitasking can also be handled at any time

Excellent Craft New feeling

Intel Raptor lake 13th H45

Equipped with i7-13700H standard CPU, 10nm, 8core 16thread, Single-core turbo frequency can be up to 4.6GHz

8Core

16 Thread

Intel 10nm

Process technology

4.6GHz

Single-core turbo

55W

Max TDP

Professional office with ease

Equipped with 13th-Intel Core I7-13700H CPU, new and efficient, excellent performance. High performance office, professional design, rendering output, editing and so on, helping you to handle work easily

80W heat dissipation

Heat dissipation
upgrade,unlimited potential

Dual Φ8mm copper pipe “horn”
hear dissipation
Adopting 10mm 3D Mesh
composite main heat pipe which exports
the core heat efficiently and timely

8007 Turbocharged fan
Adopting turbocharged fan which can
support 6.87CFM super heat dissipation

77Wh super cruising power

77Wh smart battery

4cell 15.4V pack
5000mAh/77Wh

Using 5000mAh ultra-high density battery, battery can reach 77Wh(up to 83Wh) which can be comparable to the gaming laptop battery capacity, cruising power can last longer.

Non ordinary 4 cell battery simple series, left two core stacking + right two core stacking

Using military grade battery plug metal cover, anti-electromagnetic effect is better.

Good panel, more elegant

Panel upgrade
Visual experience is new

The panel can bring a rich sensory experience, the screen flow accurately present color details

Excellent Craft New feeling

- Thin body
Overall body is uniform and thickness is
controlled within 17.9mm
High performance thin laptop

- All-metal body
Using 6series aviation aluminum material,
it is lighter and stronger

- Highlight body edge
Using diamond cut edge technology,
embellishment perfect body

- Super narrow bezel
Bezel narrow to 4.6mm. Panel is more refined

- Anti-splash keyboard
Ultra-thin keyboard, anti-splash design,
protecting liquid deep from going in the
machine which protect the safety of internal components.

Excellent Craft New feeling

- One touch fingerprint identification
systemProtecting laptop information security
and at the same time, shorten the boot
time. Adding comfort to our fast-paced
life.

- Stereo four-channel horn
Two ultra-linear four-magnetic stereo
speakers on each side, bring the
satisfaction of video and music.

- 3-level keyboard backlight
3-level backlight design, adjusting the
keyboard brightness so that you can input
accurately in the dark.

All-round specifications and more super

- Dual RAM slots
Each channel supports a Max 32GB and total 64GB
Changing configuration as your wish

- Dual SSD slots
Left slot: CPU is connected to PCIe 4.0*4 transmission
mode
Right slot: CPU is connected to PCIe 4.0*4 transmission
mode
Each slot can supports MAX 4TB and total 8TB,
providing massive storage space

- Supporting CNVIO WIFI 6
Making internet speed no longer become
office constraints

All-round specifications and more super
 Name
W042-ID5/ID6/ID6.5
 CPU
i5-13420H/ i7-13700H,13620H/ i9-13900HK
 GPU
Intel UHD Graphics
 RAM
 2 * slot up to 32GB/slot
 DDR4 in SODIMM Slot * 2
 SSD
 1x SSD- M.2-2280- 最高达 4TB- PCIe 3.0 & SATA 3.0
 1x SSD- M.2-2280- 最高达 4TB- PCIe 4.0
 Panel
15.6inch FHD/2.5K IPS

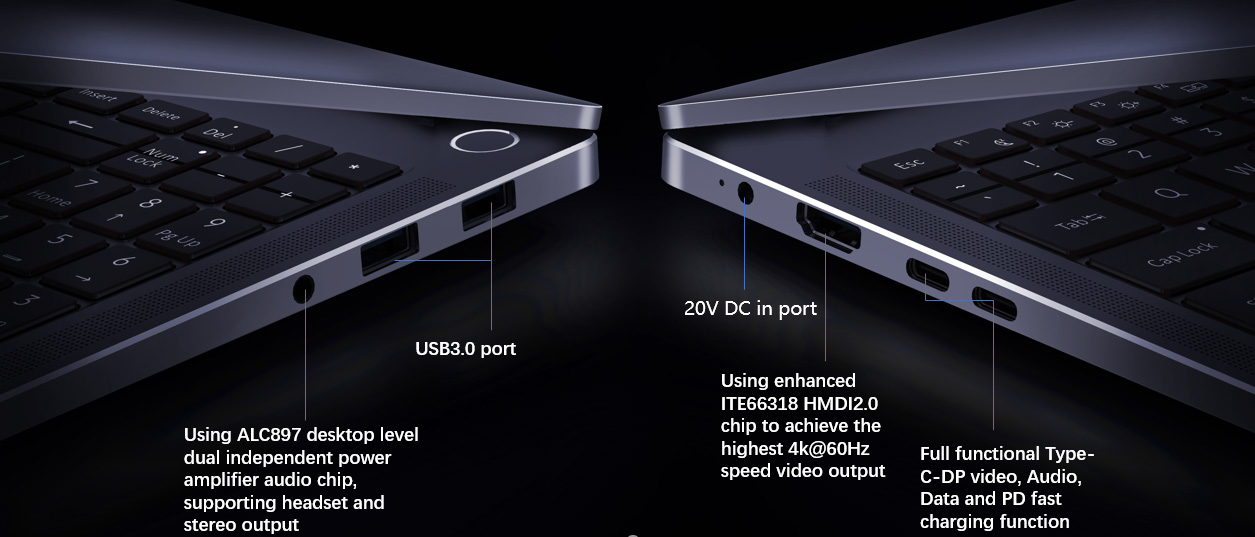

 I/O Ports
 2x Type-C
 2x USB 3.0
 1x HDMI2.0
 1x SD card (option）
 1x DC
 1x MIC/ headphone 3.5mm
 OS
Windows 11 64bit
 WIFI
AC WIFI + BT4.2/5.0 or WIFI 6, M.2
 Battery
77Wh 5000mAh( 83Wh 5400mAh is option)
 Backlight
Level 3 keyboard backlight: Level 1 is off by default; Secondary brightness 50%; Three-level brightness 100%
 Speaker
1.0W * 2 Tweeters + 1.5W * 2 Woofers
 Camera
1.0MP(1280 * 720P)
 Size
356.5mm x 237mm x 17mm
 355.5mm x 247.5mm x 18.86mm
 355.5mm x 247.5mm x 19.5mm
 Body
ACD aluminum alloy+B PC material
 Weight
1.8 / 1.85 / 1.87kg
 Adapter
100W / 20V * 5A
 Fingerprint
Default no fingerprint (optional)
 Packing
Standard Packing
